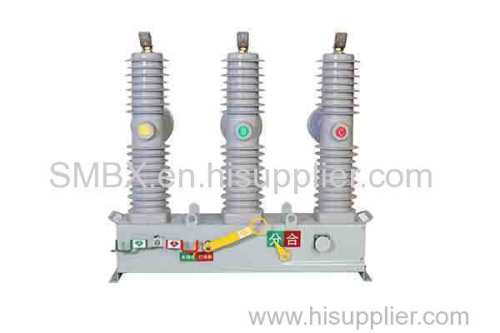

ZW32 series automatic circuit line recloser, produced by our vacuum circuit breaker company, are used in distribution systems. Auto distribution line circuit reclosers are used to make and break normal and fault currents. Electronic Circuit reclosers are fully equipped with sensors and a controller to provide protection and control. In case of a line fault, automatic circuit reclosers can break and make currents several times, thus avoiding longer network interruptions due to temporary faults.

As an electric power equipment company, we manufacture, design, and test the vacuum pole mounted auto recloser based on current standards IEC 62271-100. Gopower, which is the standard for vacuum circuit breaker suppliers to produce qualified VCB circuit breakers and offer satisfying services for the customers. If you want to buy a vacuum load break switch, please contact us, because our electrical vacuum circuit breaker price is competitive in the recent market.

Types of VCB Vacuum Circuit Breaker/Recloser

11KV Vacuum Circuit BreakerZW32 series Breakers are used in distribution systems. Circuit breakers are used to make and break normal and fault currents.

11KV Vacuum Circuit Breaker

24KV Vacuum Circuit BreakerEach vacuum interrupter is embedded in a solid-insulated pole made of weather-proof cycloaliphatic epoxy-resin. This enables a small design as well as resistance against environmental effects.

24KV Vacuum Circuit Breaker

33KV Vacuum Circuit BreakerBreaker switch unit with encapsulated vacuum interrupterEach vacuum interrupter is embedded in a solid-insulated pole made of weather-proof cycloaliphatic epoxy-resin.

33KV Vacuum Circuit Breaker

Outdoor VCB breaker is an indoor power distribution 3 phase recloser in 11kv, 24kv, 33kv, normal 24kv vacuum circuit breaker can be used for the protection and control of power electrical equipment  in industrial and mining enterprises, power plants and substations. The outdoor vacuum circuit breaker is especially suitable for places requiring no oil, less maintenance and frequent operation. The vacuum type circuit breaker as pole mounted disconnect switch can be configured in central cabinet, double-layer cabinet and fixed cabinet as control and protection of high-voltage electrical equipment.

As an electric power equipment company, we can offer types of the vacuum circuit breaker, such as 11kv vacuum circuit breakers, 33kv outdoor circuit breakers, etc.

VCB Pole Mounted Recloser FAQs



Advantages of VCB

Pole mounted auto recloser is named because its arc extinguishing medium and insulating medium of contact gap after arc extinguishing is high vacuum. Pole mounted recloser has the advantages of small volume, lightweight, suitable for frequent operation and arc extinguishing without maintenance. Vacuum type circuit breaker is widely used in a distribution network.

Vacuum Circuit Breaker Construction And Working

Vacuum Circuit Breaker Uses

How Does A Recloser Operate?

Application of Vacuum Circuit Breaker

ZW32-24/630-20 type circuit breaker is widely used in urban power grids or rural power grids as a section switch or contact switch, for outdoor substations of the rural power distribution system as an outlet switch, for 10kV system as a split and combined load current, overload current, and short circuit current protection.

VCB Working Principle

The arc extinguishing principle of the vacuum circuit breaker is: like any kind of high-voltage switch, extinguishing the arc depends on the interrupter chamber. The interrupter is the heart of a high-voltage switch. When the movable and static contacts of the switch are separated, under the action of high electric field, the media particles around the contacts become ionized, thermally free and collisionally free, thus producing an electric arc.

If the moving and static contacts are in an absolute vacuum, when the contacts are opened and closed, no arc is generated because there is no material present, and the circuit is easily broken. Want to know more vcb breaker working principle? Click here.
